Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: XIAOYU
  • Model Number: HY-0036
  • Type: Selective Pallet Rack
  • Material: Stainless Steel
  • Feature: Corrosion Protection
  • Use: Warehouse Rack
  • Certification: RoHS
  • Depth: 1.8-2.5mm
  • Weight Capacity: 1000-4500kg
  • Width: 800-1200MM
  • Height: 3000-11000mm
  • Upright: 70*90*1.8/2.0mm,70*100*1.8/2.0mm
  • Beam: 80/100/110/120/140/160*50*1.5mm
  • Wire Decking: 50*50*5.0mm
  • Capacity: 1000-4500kg/layer
  • Layers: 2-6 layers
  • Bracing: 24.5*36*1.5mm
  • surface treatment: powder coating or galvanised
  • other sizes: acceptable
  • Detachable: YES
  • Steel Material: Q235

Packaging & Delivery

Packaging Details 1.first PP film inside then carton packed outside.
2.suitable for exporting,according to the performance of the goods
3.customer requirements.
Delivery Time Shipped in 20 days after payment

pallet rack layout,brand new commercial shelving,material storage systems

PALLET RACK

Pallet Rack is a most useful and effective storage racking system providing direct access to all pallets. It provides high capacity storage which is easily installed and adjusted with low equipment and capital costs.

RACK FEATURES:

1. Heights from 2500 mm to 11800 mm

2. Frame depth from 800 mm to 1200 mm

3. Rack capacity from 800 to 4000 Kg per level

4. Uprights:60*80*1.8/2.0mm; 70*90/100*1.8*2.0mm; 80*120*2.0mm steel;

5. Box-beam:80/100/120/140/160*50*1.5mm

6. Connect bar: 200-300mm

7. Surface treatment:powder coating treatment.



XY BRAND - Specifications of pallet rack

Frame

Height (3-15m)

Depth (800-1,200mm)

Upright section: 90 x 70; 100 x 70; 120 x70mm

Thickness: 1.8/2.0mm

Beam

Length (1200-3600mm)

Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50mm

Thickness: 1.5mm

Load capacity

1-4Tons/Layer

Others

MOQ. 10 sets

Pitch: 50mm

Delivery time: 7-20days

Payment term. T/T (30% down payment) or L/C at sight

Necessary accessories: for free(bracing, base plate, etc)

Packing: stretch film & carton

- Surface treatment: powder coated

Production capacity: 800T/month

Main market: Australasia, Europe, Asia, Central America, South America, North Africa and…( more than 40countries)

Available in various colors/specifications/sizes



Product Details

Main Pallet Rack Components

For the upright:


Standard size of: 120*80*2.0mm, 100*70*2.0mm,
90*70*2.5mm, 90*70*2.0mm, 90*70*1.8mm, 80*60*2.0mm and 80*60*1.8mm. Special requests of the upright style and size can be designed according to the customer’s requests.

Specification (mm)

Width (mm)

depth (mm)

Thickness (mm)

Height (mm)

Mac load(kg)

60*55

60

55

1.2

2000

2000

60

55

1.5

4000

4000

80*60

80

60

1.8

6000

5000

80

60

2.0

8000

8000

90*70

90

70

1.8

1000

8000

90

70

2.0

11500

10000

90

70

2.5

11500

12000

100*70

100

70

1.8

11500

10000

100

70

2.0

11500

12000

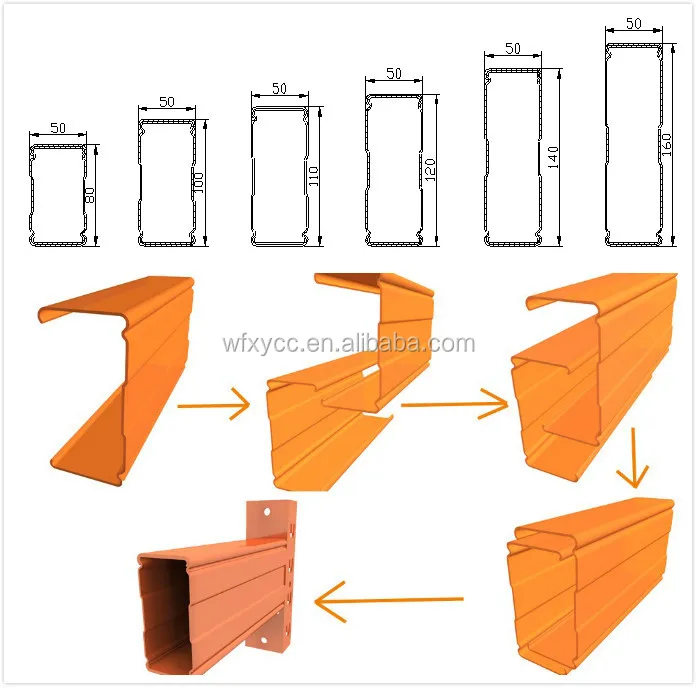

For the Box-beam:

Quotation require

Quotation requirements, kindly inform us the info as below

- Drawing of racking or warehouse (if available)

Size of your warehouse (Length x Width x Clear height)

Size (W*D*H) & weight of pallet (after loading)

How many levels you would like



Packaging

company information

Other warehouse equipment



         STEEL PALLET                          STACKING RACK                        POWDER COATING

FAQ

1. Q: Are you a factory or trading company?

A: Factory, which was established in 1997.

We are a specialized company, which is focusing on providing expert service including design, manufacture, installation & maintenance for the logistic industries & warehouse equipments.

2. Q: Where is your factory located? can I visit there?
   A: Our factory is located in Daotian Industrial Zone, Shouguang,
Weifang City, Shandong Province, China.

      You are warmly welcome to visit us whenever you are available!

3. Q: What is the term of payment?

A: T/T,L/C,Western Union, MoneyGram are available.

   As usual, pre-paid full payment or 30% deposit then pay the balance before delivery.

4. Q: What is your delivery time?

A: It depends on the order quantity and racking types.

Generally, within 20 days for ordinary order quant after receiving the deposit.

5. Q: Which port will be used as loading port?

A: Qingdao port, the closest port to us, is recommended strongly as loading port.

6. Q: May I know the status of my order?

A: Yes. We will send you information and photos at different production stage of your order. Every step will be send to you in time.

7. Q: Can I customize shelving or racking at my own size?

  A: Sure.
